  • Product code: D48A
  • Price: 0 VND

  • Antennas
    Contact for details

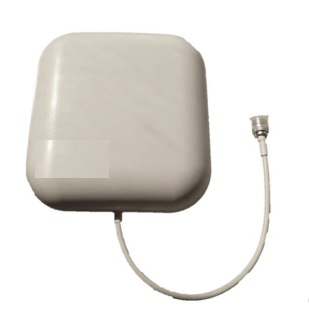

D48A

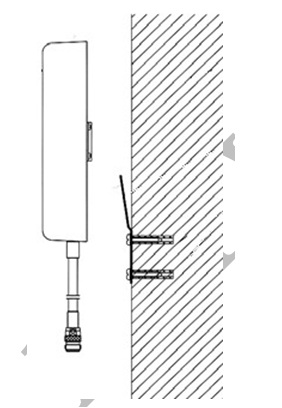

D48

Electrical Specifications
Frequency range (MHz) 698-960 1710-3800
Gain (dBi) 4 8
VSWR (max) ≤ 2.0 ≤ 2.0
HPBW / H (  °) 90 60
HPBW / V (  °) 80 50
Impedance(Ω) 50
Polarization Vertical
Maximum Input power(W) 50
Intermodulation (IMD3) (2W) ≤ -150dBc (2x33dBm carrier)
Lightning Protection DC ground
Connector Type N Jack (Female)
Radome Material ABS
Operating Temperature (°C) -35°~ 65°
Humidity 95% RH
Dimensions ( mm ) 210 × 180 x 50
Weight (kg) 0.5
