Antennas
-
Antennas
- Post on 26-11-2020 10:17:24 AM - 1133 Views
- Product code: T465A
-
Price: 0 VND
-
Antennas
Contact for details
| Electrical Specifications | ||||
| Frequency range (MHz) | 698-806 | 806-960 | 1710-2700 | 3400-3800 |
| Gain (dBi) | 4 | 4 | 5 | 6 |
| VSWR (max) | ≤1.8 | ≤1.5 | ≤1.5 | ≤1.8 |

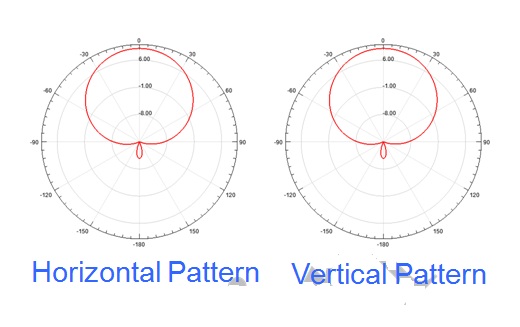

| HPBW / H ( °) (±15) | 100 | 100 | 80 | 80 |
| HPBW / V ( °) (±20) | 90 | 90 | 60 | 60 |
| Impedance(Ω) | 50 | |||
| Polarization | +/- 45 | |||
| IMD3 @2x33dBm(2W) | -150dBc | NA | ||
| Maximum Input power(W) | 50 | |||
| Connector Type | 4.3-10 (Female) x2 | |||
| Radome Material | ABS | |||
| Operating Temperature (°C) | -40°~ 55° | |||
| Humidity | 95％ RH | |||
| Weight (kg) | 0.45 | |||
| Dimensions ( L × W × H ) | 207 x 177 x 45 mm | |||

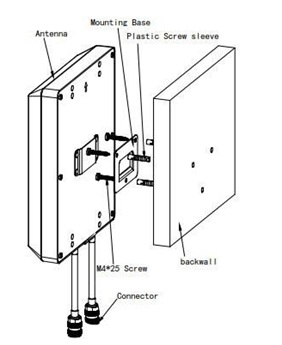

| Mounting | On Wall | |||
Specifications may change at any time without notice.
